Title of Mode: CYLINDER-DRIVEN MULTI-LINK FLIP MECHANISM

Project guide: Mr. M. ANIL KUMAR _{M. Tech.}

Batch List:

B. RAJESH [232G5A0303]

C.BOJESH [232G5A0305]

E. LOKESH GOWD [232G5A0307]

K. GOWTHAM [232G5A0312]

Brief description:

      The objective of a cylinder driven multi-link flip mechanism is to convert linear motion from a cylinder into rotational or flipping motion through a series of interconnected links. This mechanism is designed to perform specific tasks such as flipping, lifting or repositioning objects efficiency.

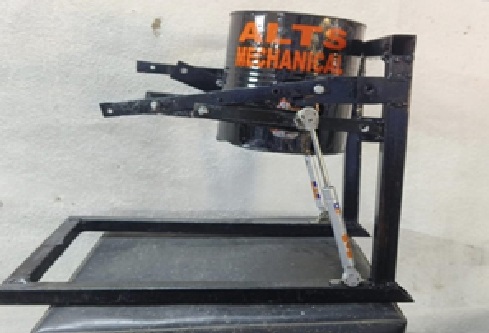

                       Picture of model

           Picture of batch with their model

   Picture of Model presentation to the students

     Picture of Model presentation to the Jury
